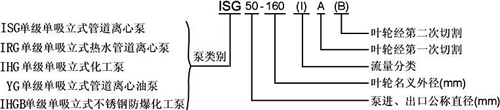

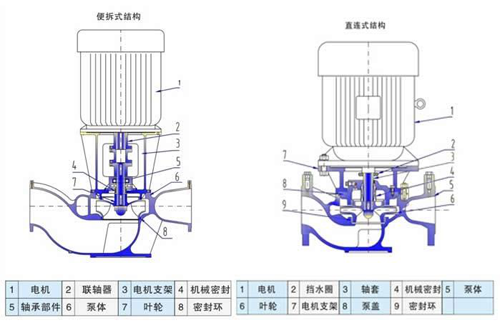

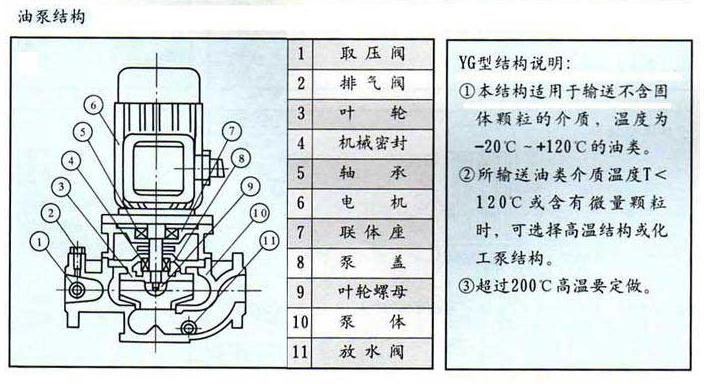

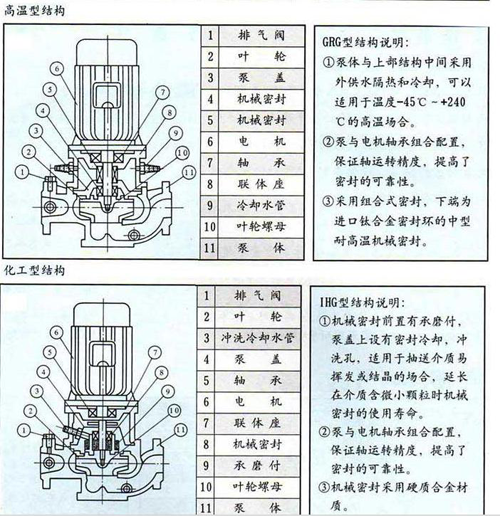

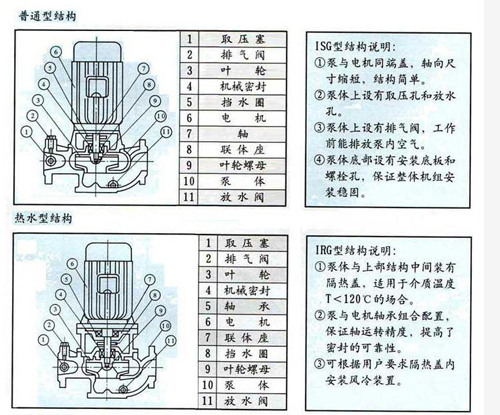

例:ISG50-160(I)A(B)
50—泵进出口直径为50mm
160—叶轮名义外径为160mm
I—流量分类
A—叶轮外径切割代号
B—叶轮经第二次切割
ISG—单级单吸管道离心泵
例:ISGD50-160(I)A(B)
50—泵进出口直径为50mm
160—叶轮名义外径为160mm
I—流量分类
A—叶轮外径切割代号
B—叶轮经第二次切割
ISGD—低速立式管道离心
型 号 | 流量 | 扬程 | 效率 | 转速 | 电机功率 | 汔蚀余量 | 重量 | |
m3/h | L/s | (m) | (%) | (r/min) | (kw) | (NPSH)r | (kg) | |
15-80 | 1.1 | 0.3 | 8.5 | 26 | 2800 | 0.18 | 2.3 | 17 |
1.5 | 0.42 | 8 | 34 | |||||
2 | 0.55 | 7 | 34 | |||||
20-110 | 1.8 | 0.5 | 16 | 25 | 2800 | 0.37 | 2.3 | 25 |
2.5 | 0.69 | 15 | 34 | |||||
3.3 | 0.91 | 13.5 | 35 | |||||
20-160 | 1.8 | 0.5 | 33 | 19 | 2900 | 0.75 | 2.3 | 29 |
2.5 | 0.69 | 32 | 25 | |||||
3.3 | 0.91 | 30 | 23 | |||||
25-110 | 2.8 | 0.78 | 16 | 34 | 2900 | 0.55 | 2.3 | 26 |
4 | 1.11 | 15 | 42 | |||||
5.2 | 1.44 | 13.5 | 41 | |||||
25-125 | 2.8 | 0.78 | 20.6 | 28 | 2900 | 0.75 | 2.3 | 28 |
4 | 1.11 | 20 | 36 | |||||
5.2 | 1.44 | 18 | 35 | |||||
25-125A | 2.5 | 0.69 | 17 | 35 | 2900 | 0.55 | 2.3 | 27 |
3.6 | 1 | 16 | ||||||
4.6 | 1.28 | 14.4 | ||||||
25-160 | 2.8 | 0.78 | 33 | 24 | 2900 | 1.5 | 2.3 | 39 |
4 | 1.11 | 32 | 32 | |||||
5.2 | 1.44 | 30 | 33 | |||||
25-160A | 2.6 | 0.12 | 29 | 31 | 2900 | 1.1 | 2.3 | 34 |
3.7 | 1.03 | 28 | ||||||
4.9 | 1.36 | 26 | ||||||
32-100 | 4.5 | 12.5 | 12.5 | 44 | 2900 | 0.55 | 2 | 27 |
32-100(I) | 4.4 | 1.22 | 13.2 | 48 | 2900 | 0.75 | 2 | 32 |
6.3 | 1.75 | 12.5 | 54 | |||||
8.3 | 2.32 | 11.3 | 53 | |||||
32-125 | 3.5 | 0.97 | 22 | 40 | 2900 | 0.75 | 2.3 | 28 |
5 | 1.39 | 20 | 44 | |||||
6.5 | 1.8 | 18 | 42 | |||||
32-125A | 3.1 | 0.86 | 17.6 | 43 | 2900 | 0.55 | 2.3 | 28 |
4.5 | 1.25 | 16 | ||||||
5.8 | 1.61 | 14.4 | ||||||
32-160 | 6.5 | 5 | 32 | 44 | 2900 | 1.5 | 2.3 | 39 |
32-160A | 4 | 1.1 | 25 | 34 | 2900 | 1.1 | 2 | 38 |
32-160(I) | 4.4 | 1.22 | 33.2 | 34 | 2900 | 2.2 | 2 | 4.7 |
6.3 | 1.75 | 32 | 40 | |||||
8.3 | 2.32 | 30.2 | 42 | |||||
32-200 | 4.5 | 12.5 | 50 | 32 | 2900 | 3 | 2 | 55 |
32-200(I) | 4.4 | 1.22 | 50.5 | 26 | 2900 | 4 | 2 | 43 |
6.3 | 1.75 | 50 | 33 | |||||
8.3 | 2.32 | 48 | 35 | |||||
32-200A | 2.8 | 0.78 | 44.6 | 34 | 2900 | 2.2 | 2 | 74 |
4 | 1.11 | 44 | 40 | |||||
5.2 | 1.44 | 42.7 | 42 |
